Ludwig XVIII

Availability: In stock

$6,950.00

Quick Overview

eighteen speed

At the heart of Schindelhauer’s new vanguard Ludwig XVIII lays the Pinion P1.18 gearbox. 18 evenly spaced ratios that make for a total gear range of 636% outline the current pinnacle in shifting. Every gear conveys the immediacy of a single-speed transmission while the centrally mounted gearbox creates an evened-out balance. Equipped with exclusive CNC-machined disc brakes, Brooks saddle and Gates’ Center-Track System, Ludwig XVIII can be fully customised according to customers’ requests.

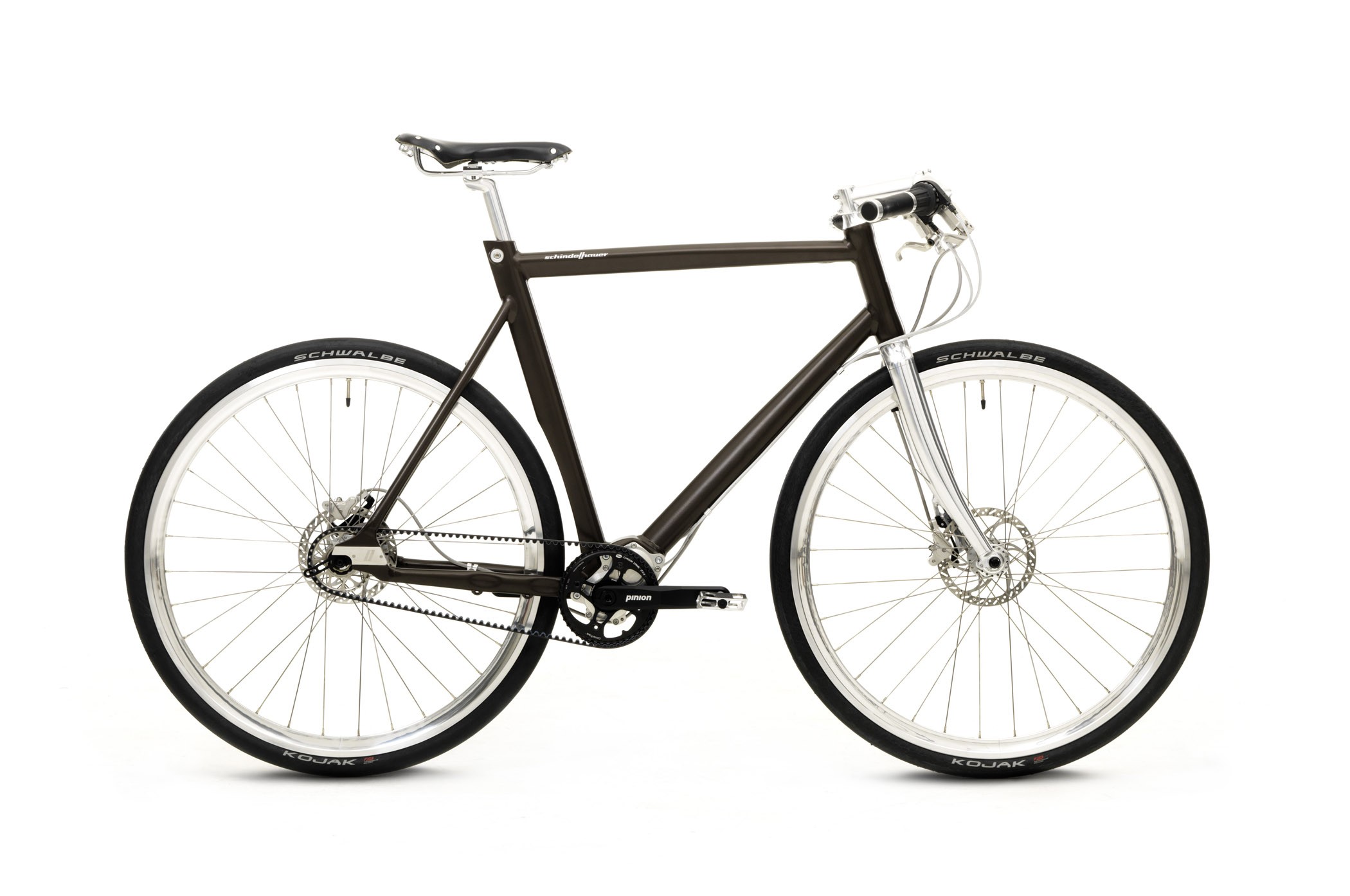

Ludwig XVIII

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

+$108.00

Maximum number of characters: 25

* Required Fields

$6,950.00

Details

frame: aluminium (Al6061), triple butted aero tubing, drop outs with the slider-bel- tensioning-system and Schindelhauer- beltport, integrated seat post clamp, smooth welded frame

sizes: 50, 53, 56, 59, 62

fork: aluminium

headset: Tange Seiki integrated

transmission: Gates Carbon-Drive, front 46 / rear 30 tooth

bottom bracket / gear shift: Pinion 18 speed gear box

crankset: Pinion

pedals: Schindelhauer Urban, aluminum, CNC machined, silver polished

stem: Kalloy A-head silver high polished

bar: Satori Noirette Aluminum

saddle: Brooks Swallow Classic black

grips: Schindelhauer ergo leather

seat post: Kalloy patent silver high polished

wheels: Schindelhauer high flange FW hub / Shimano 11-gear RW hub silver high polished, Schindelhauer SH33 rims silver polished, DB spokes, FW / RW 3-cross

brakes: Trickstuff Cleg 2 disc brakes 160mm

tires: Shawalbe Kojak 35-622

weight: 13, 2 kg (FS 53)

options: fenders
